Question Add more plug outlets near pilot seat

Welcome to RVForums.com

  • Register now and join the discussion
  • Friendliest RV Community on the web
  • Modern site for PC's, Phones, Tablets - no 3rd party apps required
  • Ask questions, help others, review campgrounds
  • Get the most out of the RV Lifestyle
  • Invite everyone to RVForums.com and let's have fun
  • Commercial/Vendors welcome
Joined
Nov 14, 2019
Messages
689
Location
Orinda, CA
RV Year
2017
RV Make
Newmar
RV Model
Ventana 4002
RV Length
40’10
TOW/TOAD
2015 Jeep Trailhawk
How difficult is it to add another usb and a 12 volt outlet near the pilot seat? I am imagining we can tap into an existing line nearby for current. I also guess finding a place to put the outlet is the bigger challenge?

Joined
Jul 27, 2019
Messages
3,669
Location
Midlothian, VA
RV Year
2017
RV Make
Newmar
RV Model
Ventana 4037
RV Length
40' 10"
TOW/TOAD
2017 Chevy Colorado
Fulltimer
No
12V outlets are easy, you have plenty of red/white wires under the dash you can tap into or splice into wires going to other 12V outlets.

Joined
Nov 2, 2019
Messages
2,386
Location
WA, MT or somewhere else!
RV Year
2018
RV Make
Newmar
RV Model
Mountain Aire 4047
RV Length
40'
TOW/TOAD
2014 Honda CR-V
I installed additional 12VDC outlets in our previous coach (had Newmar do it as part of the build in the 2018 MADP) and it was quite easy.

There is one caution, however; before drilling any holes, positively verify what's behind the area where you plan to drill. I had to work around molded dividers and screw tabs, braces, wire looms, etc. You want to be sure that there is enough space behind where you drill the hole for the socket base and wires to fit. And, you surely don't want to penetrate a wire/wire loom with the drill bit/hole saw.

TJ

Joined
Nov 14, 2019
Messages
689
Location
Orinda, CA
RV Year
2017
RV Make
Newmar
RV Model
Ventana 4002
RV Length
40’10
TOW/TOAD
2015 Jeep Trailhawk
Thank you for that link to Amazon and this came up in the suggested products which could work until I order my next coach.. Anyone tried one of these? I am not an expert on electric and not sure about "spliiting" as it refers to here.

https://www.amazon.com/dp/B07FDQLL7K/?tag=rvf01-20

Last edited by a moderator:
Joined
Nov 3, 2019
Messages
185
Location
West Palm Beach Fl
RV Year
2017
RV Make
Newmar
RV Model
Ventana 4369
RV Length
44
TOW/TOAD
Buick Enclave

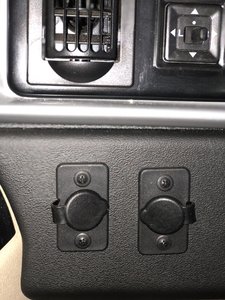

Here is mine

Joined
Nov 15, 2019
Messages
500
Location
DFW, TX
RV Year
2020
RV Make
Newmar
RV Model
New Aire 3543
RV Length
35
TOW/TOAD
2020 Jeep Gladiator
Thank you for that link to Amazon and this came up in the suggested products which could work until I order my next coach.. Anyone tried one of these? I am not an expert on electric and not sure about "spliiting" as it refers to here.

https://www.amazon.com/dp/B07FDQLL7K/?tag=rvf01-20

This would certainly be easier than tapping into wires (although it’s not that hard with the right connectors), especially if you are going to get a new coach soon. You can order extra USB’s as a special when you order; I did.

I have a question about what you want to plug into those extra outlets...I got this on my current coach, as I have a cigarette lighter outlet to the upper left of the steering wheel, and I use this for GPS on my phone. I see it’s no longer available, but it gives you an idea about other possibilities.


These things are usually make in China, and the manufacturing tolerances aren‘t that good. I had to put pieces of plastic soda straws in mine, as it was pretty loose.

Last edited by a moderator:
Joined
Nov 14, 2019
Messages
689
Location
Orinda, CA
RV Year
2017
RV Make
Newmar
RV Model
Ventana 4002
RV Length
40’10
TOW/TOAD
2015 Jeep Trailhawk
@Akdare I have the Garmin GPS and the RVi tablet for the toad braking system that both need a 12v source. I am going to try that splitter first and see how it does.

Joined
Nov 15, 2019
Messages
500
Location
DFW, TX
RV Year
2020
RV Make
Newmar
RV Model
New Aire 3543
RV Length
35
TOW/TOAD
2020 Jeep Gladiator
Let us know how it works for you.

Joined
Nov 9, 2019
Messages
282
Location
Rockville, Va.
RV Year
2020
RV Make
Newmar
RV Model
Canyon Star 3710
RV Length
38
TOW/TOAD
2017 Gmc Terrain & 2017 Chevrolet Colorado ZR-2
@Akdare I have the Garmin GPS and the RVi tablet for the toad braking system that both need a 12v source. I am going to try that splitter first and see how it does.

I too am using the Garmin 770 & RVi tablet, and am using a similar splitter in my existing 12 volt plug for the new coach. Due to the weight of the two plugs,the swivel point moves up & down with the slightest vibration, which causes the insert portion to vibrate loose, thus losing connection. I'm thinking I will put an additional 12 volt outlet next to the existing one, thereby eliminating the issue .
Just an FYI!

Joined
Nov 14, 2019
Messages
689
Location
Orinda, CA
RV Year
2017
RV Make
Newmar
RV Model
Ventana 4002
RV Length
40’10
TOW/TOAD
2015 Jeep Trailhawk
@Jabber Jaw that is is excellent intel and I am going to cancel my amazon order. Have you been able power the rvi tablet with just the USB port? When I tried it, my tablet died.

Joined
Nov 15, 2019
Messages
500
Location
DFW, TX
RV Year
2020
RV Make
Newmar
RV Model
New Aire 3543
RV Length
35
TOW/TOAD
2020 Jeep Gladiator
