I have a 1984 Revcon front wheel drive motorhome I’m trying to locate ball joints inner and outer for this vehicle can anyone help me?

Joined
Nov 13, 2019
Messages
570
Location
Where ever I park it
RV Year
2017
RV Make
Salem
RV Model
Hemisphere 346RK
RV Length
38'
Ball joints are located by the wheel and allow the wheel to move so you can turn. Do you mean tie rod ends? They are what makes the wheels turn right or left. I would think that most decent auto parts stores can locate them for you. You would probably need to know what chassis was used (Ford, GM, etc.).

Joined
Dec 11, 2020
Messages
115
Location
Texas
RV Year
2000
RV Make
Newmar
RV Model
Dutch Star 3858
RV Length
38 ft
Fulltimer
No
I don't know what to tell you there, unless they use the same suspension that they sourced the Ford brake caliper off
of.

Joined
Mar 1, 2021
Messages
15
Ball joints are located by the wheel and allow the wheel to move so you can turn. Do you mean tie rod ends? They are what makes the wheels turn right or left. I would think that most decent auto parts stores can locate them for you. You would probably need to know what chassis was used (Ford, GM, etc.).
I meant the tire Rod ends. Sorry. I already replaced the upper ball joints. It’s the Tie rods I’m looking for no one can find them for me. The ones they have The auto parts store or much thinner and the tire rod ends are much smaller. They they are MOOG. When I did the brakes the Ford rotor work I had to have a quarter inch shaved off and it has a Ford F350 caliber. However the master brake cylinder is Chevrolet for a P 30.

how can I tell if the chassis is Ford or Chevy? I would greatly appreciate any help she’s ready to go all except for the tire rod ends I did the new bearings and new seals and everything

please help thanks

Joined
Nov 3, 2019
Messages
752
Location
Florida
RV Year
2018
RV Make
Newmar
RV Model
CanyonStar
RV Length
39' 11"
TOW/TOAD
Demco KarKaddy 460SS and VW Passat
Fulltimer
No

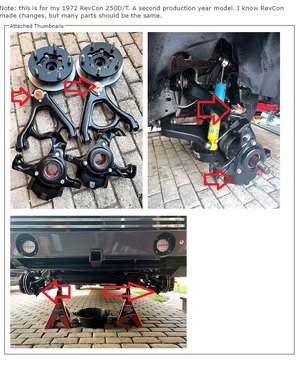

Ball joints are located above and below the axle outer CV joint. The ball joints attach the upper and lower A arms (Looks like an A) to the steering knuckle (the part the axle goes through).
ball joints recon.jpg

Joined
Nov 3, 2019
Messages
752
Location
Florida
RV Year
2018
RV Make
Newmar
RV Model
CanyonStar
RV Length
39' 11"
TOW/TOAD
Demco KarKaddy 460SS and VW Passat
Fulltimer
No

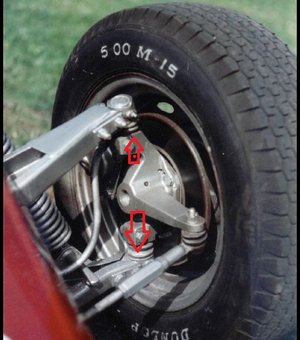

Here is a clear picture of the Ball Joints on a different vehicle.

A Arms baal joints.jpg

Joined
Nov 13, 2019
Messages
570
Location
Where ever I park it
RV Year
2017
RV Make
Salem
RV Model
Hemisphere 346RK
RV Length
38'
Not sure how to tell what chassis you have. Maybe someone on the motorhome side knows how to tell?

Joined
Sep 21, 2020
Messages
1,058
Location
Ringgold, GA.
RV Year
2006
RV Make
Holiday Rambler
RV Model
Ambassador
RV Length
40'
TOW/TOAD
2019 Jeep Grand Cherokee
Since you know the size and thread of the current tie rod end I would go to www.rockauto.com and look up tie rod ends for a C30 Chevy or an F350 or F450 Ford and see if you can find something that matches. This website is really good about giving you detailed info and pictures so you can match parts pretty well. All you need are the length, the thread size and the hole diameter and you should be able to find one that fits. Who cares what it supposed to fit originally?? Right?
