Does anyone know if there is a under das plug for electric brake controller on the king Aire. if so what oem plug did spartan use

Joined
Nov 4, 2019
Messages
752
Location
No Where In Particular
RV Year
2020
RV Make
Newmar
RV Model
Dutch Star 4369
RV Length
43’ 9”
TOW/TOAD
2016 Colorado
Fulltimer
Yes
Not sure on KA but found the plug in our 2020 DS Located at bottom of steering column. It was clearly marked and has both sides of the plug so you just connect the necessary wires.

Joined
Dec 27, 2019
Messages
66
RV Year
2017
RV Make
Newmar
RV Model
King Aire
RV Length
45
TOW/TOAD
Jeep rubicon
Ok the answer from spartan is yes they are prewired under the dash but know one seems to know which Oem connector is used. Will work on it some more tomorrow

Joined
Nov 4, 2019
Messages
752
Location
No Where In Particular
RV Year
2020
RV Make
Newmar
RV Model
Dutch Star 4369
RV Length
43’ 9”
TOW/TOAD
2016 Colorado
Fulltimer
Yes
I have a DS on Spartan, if it will help I can see about posting a picture of the connector.

Joined
Dec 27, 2019
Messages
66
RV Year
2017
RV Make
Newmar
RV Model
King Aire
RV Length
45
TOW/TOAD
Jeep rubicon
That might be helpful as I can’t find anyone with a part number for the pigtail adapter

Joined
Nov 4, 2019
Messages
752
Location
No Where In Particular
RV Year
2020
RV Make
Newmar
RV Model
Dutch Star 4369
RV Length
43’ 9”
TOW/TOAD
2016 Colorado
Fulltimer
Yes
I will take a couple pics tomorrow in the daylight. I look for anything that might be a part number.

Joined
Dec 27, 2019
Messages
66
RV Year
2017
RV Make
Newmar
RV Model
King Aire
RV Length
45
TOW/TOAD
Jeep rubicon
thanks

Joined
Nov 4, 2019
Messages
752
Location
No Where In Particular
RV Year
2020
RV Make
Newmar
RV Model
Dutch Star 4369
RV Length
43’ 9”
TOW/TOAD
2016 Colorado
Fulltimer
Yes
Dave

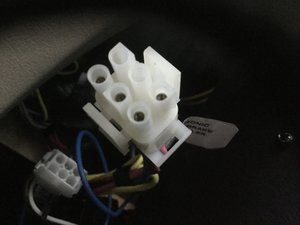

Here is the plug. First picture is chassis side, second is the pigtail and third is connected. I could find any numbers except wire identification on pigtail side.


Attachments

  • D31A4B5C-D1BC-475D-B0BD-283C3B90EB2B.jpeg
    1.3 MB · Views: 10
  • 8CC593C3-9DB8-4332-BB95-EE28425BAAB4.jpeg
    1,010.1 KB · Views: 10
  • DD1E83E9-507A-43F6-8520-5BF895ADCEBB.jpeg
    1.1 MB · Views: 11
Joined
Nov 2, 2019
Messages
2,559
Location
WA, MT or somewhere else!
RV Year
2018
RV Make
Newmar
RV Model
Mountain Aire 4047
RV Length
40'
TOW/TOAD
2014 Honda CR-V
The connector is a six-pin Molex and is commonly available at electrical parts houses or even on Amazon, In addition to the pigtail with red, blue and pink wires, there should also be a pair of yellow wires folded back into the wire bundle as well. The spare yellow wires also run to the back of the coach (hitch receiver area; same bundle as the red/blue/pink wires) and were unused in our 2018 MADP.

We found our front wire bundle alongside the steering column about a foot off the floor and on the passenger side of the column. They were tucked well inside the covering panel on the firewall.

TJ

Joined
Dec 27, 2019
Messages
66
RV Year
2017
RV Make
Newmar
RV Model
King Aire
RV Length
45
TOW/TOAD
Jeep rubicon
The connector is a six-pin Molex and is commonly available at electrical parts houses or even on Amazon, In addition to the pigtail with red, blue and pink wires, there should also be a pair of yellow wires folded back into the wire bundle as well. The spare yellow wires also run to the back of the coach (hitch receiver area; same bundle as the red/blue/pink wires) and were unused in our 2018 MADP.

We found our front wire bundle alongside the steering column about a foot off the floor and on the passenger side of the column. They were tucked well inside the covering panel on the firewall.

TJ
Thank you that is a huge help. Now I can make my own pigtail. much appreciated
