chassis wiring diagram

[Glennbob1951]

I have a 2000 monaco Windsor
Am needing the chassis wiring diagram



[Chargerman]

You would have your best luck if you ask on the Monacoers.org forum. There are many electrical diagrams there but not sure if one for your Coach is there



[Glennbob1951]

You would have your best luck if you ask on the Monacoers.org forum. There are many electrical diagrams there but not sure if one for your Coach is there

Still learning the site Thanks



[Chargerman]

Do you have a specific issue that you are trying to resolve?



[Glennbob1951]

Yes. 1999 Monaco Windsor. While driving down the road. Lost all 12vdc power to front drivers side electrical compartment
The 12vdc post in back passenger side electrical compartment that’s marked front chassis 12vdc has power. So between the 12vdc feed from back compartment to the front drivers side electrical compartment. I’m not getting 12vdc.



[Chargerman]

Post your issue on the Monacoers site also. A bunch of very knowledgeable Monaco folks there



[Chargerman]

I would check the circuit breakers in your rear run bay. Not sure how a 2000 coach is payed out but on mine there are lever type breakers in the rear and I would imagine one supplies power to the front bay



[Glennbob1951]

Thanks will do



[Chargerman]

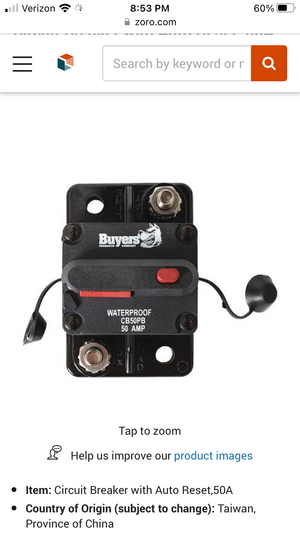

This is what mine look like



[Glennbob1951]

The 12vdc post in backside electrical compartment. Marker to front electrical compartment has 12vdc. When I go to front electrical compartment there is no 12vdc power to post.
Is there a junction box between the back electrical compartment and front electrical compartment?
Thanks
