I have been planning a trip for a while to go Jeeping in Arkansas. There are 3 Badge trails there, and I have had my heart set on this trip for a long time.

I rented an AirBNB, and then talked the family into going, and invited other friends.

My plan has been to tow the jeep on a trailer, so that we could take the trip in the comfort of the pickup truck. This week, I decided to weld better ramps on the trailer, and then welded in C-Channel supports for the anchor connections.

Lots of planning, cutting, measuring, etc. I was able to get the jeep strapped by the axles with 4 straight pulls of the axle straps. That is the *best* way to do it..no question about it.

Finally got the jeep loaded up today.

Here is a few pictures of the setup:



redbaron

Staff member
RVF Moderator
Joined
Nov 3, 2019
Messages
1,739
RV Year
2022
RV Make
Newmar
RV Model
London Aire 4551 (**ON ORDER**)
RV Length
45
TOW/TOAD
2020 Jeep Wrangler Unlimited Rubicon
After getting everything loaded, I did a test drive. Trailer pulls perfect!

I increased speed to 40mph, and did an emergency lane change. The trailer tracked perfect. I did a quick change back and forth, like I was avoiding an obstacle, and the trailer tracks perfect. Load distribution was 60/40 spot on -- from the butt of my seat.

I decided that it was best to go to the local cat scale to weigh...and that is when my plans fell apart.


redbaron

Staff member
RVF Moderator
Joined
Nov 3, 2019
Messages
1,739
RV Year
2022
RV Make
Newmar
RV Model
London Aire 4551 (**ON ORDER**)
RV Length
45
TOW/TOAD
2020 Jeep Wrangler Unlimited Rubicon
Pulled on the scale, so that truck steer was on pad 1, truck rear on pad2, and trailer on pad3.

1st weigh -- with Jeep

Steer axle: 5220
Drive Axle: 5640
Trailer Axle: 7120
Total: 17,980lb

2nd weigh -- no jeep

Steer Axle: 5520lb
Drive axle: 4500lb
Trailer axle: 2180lb
Total: 12,200lb


The jeep weight is 5,780lbs.

My trailer has 3500lb axles.

I was comfortable with moving the weight forward, until I looked at the front of the trailer -- it was not designed to take a dynamic load of 1000lbs. It is rated for 700lbs dynamic.

No way around this---the truck and trailer will remain home.

I am now going into the house to tell my wife and kids that they no longer have an 8ft bed to pack in, but rather an 18" section behind the seats.

Should be fine ... If you don't hear from me .... well, now you know why.


ARD

Staff member
RVF Moderator
RVF Supporter
Joined
Nov 2, 2019
Messages
614
Location
Fulltiming
RV Year
2022
RV Make
Newmar
RV Model
London Aire 4551 ("On Order")
RV Length
45
TOW/TOAD
Yukon Denali
Fulltimer
Yes
I hope you survive. LOL. On the upside...ya'll are going jeeping. Woo hoo!


Jabber Jaw

RVF Supporter
Joined
Nov 9, 2019
Messages
466
Location
St. Augustine Fl
RV Year
2020
RV Make
Newmar
RV Model
Canyon Star 3710
RV Length
38
TOW/TOAD
2017 Gmc Terrain & 2017 Chevrolet Colorado ZR-2
Fulltimer
No
Spend a bit of the "London Aire" money on a new trailer! Then work hard to save it back up in time to pay for the "London Aire" on D-Day!!;):cool:


redbaron

Staff member
RVF Moderator
Joined
Nov 3, 2019
Messages
1,739
RV Year
2022
RV Make
Newmar
RV Model
London Aire 4551 (**ON ORDER**)
RV Length
45
TOW/TOAD
2020 Jeep Wrangler Unlimited Rubicon
Spend a bit of the "London Aire" money on a new trailer! Then work hard to save it back up in time to pay for the "London Aire" on D-Day!!;):cool:
Oh, I already tried. Been on the Facebook market place trying to find something. Decided this won't happen to me again, so I am going to get a 44ft dovetail 26k trailer. Will be able to take 3 jeeps that way.

My buddies already agreed to pay meals and fuel on future trips if I haul theirs, so in 50 years it will pay for itself!


redbaron

Staff member
RVF Moderator
Joined
Nov 3, 2019
Messages
1,739
RV Year
2022
RV Make
Newmar
RV Model
London Aire 4551 (**ON ORDER**)
RV Length
45
TOW/TOAD
2020 Jeep Wrangler Unlimited Rubicon
Made it all fit. Skybox to the rescue.


Bob K4TAX

RVF Regular
Joined
Mar 13, 2021
Messages
196
Location
Tennessee
RV Year
2016
RV Make
Forest River
RV Model
Wildwood XL 253 RLXL
RV Length
25 ft or so
TOW/TOAD
Chev 2011 Silverado Crew Cab LTZ
Fulltimer
No
Pulled on the scale, so that truck steer was on pad 1, truck rear on pad2, and trailer on pad3.

1st weigh -- with Jeep

Steer axle: 5220
Drive Axle: 5640
Trailer Axle: 7120
Total: 17,980lb

2nd weigh -- no jeep

Steer Axle: 5520lb
Drive axle: 4500lb
Trailer axle: 2180lb
Total: 12,200lb


The jeep weight is 5,780lbs.

My trailer has 3500lb axles.

I was comfortable with moving the weight forward, until I looked at the front of the trailer -- it was not designed to take a dynamic load of 1000lbs. It is rated for 700lbs dynamic.

No way around this---the truck and trailer will remain home.

I am now going into the house to tell my wife and kids that they no longer have an 8ft bed to pack in, but rather an 18" section behind the seats.

Should be fine ... If you don't hear from me .... well, now you know why.
So what does the label on the front left of the trailer indicate the gross weight rating would be? That's the first thing one should always look at. And this is a number to "never exceed". Otherwise, one becomes a very underpaid test driver. If for example, if one had rolled the trailer and jeep during one of the emergency maneuver tests, now you'd be really pi--ed!

Folks the numbers are there for a reason. Read 'em and believe 'em. Just because one got away and said "been doing this for years", well where the rubber meets the road or doesn't, will be the real proof. Expensive lesson too.

Yes, you need a bit more trailer under that Jeep.


redbaron

Staff member
RVF Moderator
Joined
Nov 3, 2019
Messages
1,739
RV Year
2022
RV Make
Newmar
RV Model
London Aire 4551 (**ON ORDER**)
RV Length
45
TOW/TOAD
2020 Jeep Wrangler Unlimited Rubicon
The trailer is rated 8kw, but the axles are 7k. It was not up to the task, and the jeep is heavier than I expected. I knew I had done a lot of upgrades, but didn't realize I added 1200lbs.

As far as dinghy towing, that was considered but the rooftop rack held everything without sacrifice. Bonus is we can now pull into any gas station desired or even starbucks!


redbaron

Staff member
RVF Moderator
Joined
Nov 3, 2019
Messages
1,739
RV Year
2022
RV Make
Newmar
RV Model
London Aire 4551 (**ON ORDER**)
RV Length
45
TOW/TOAD
2020 Jeep Wrangler Unlimited Rubicon
Having a blast on the trails. 20220114_150208.jpg 20220114_150201.jpg 20220114_150247.jpg 20220114_150400.jpg 20220114_150338.jpg


sheridany

RVF Supporter
Joined
Nov 14, 2019
Messages
1,124
Location
Orinda, CA
RV Year
2017
RV Make
Prevost
RV Model
Marathon #1250
RV Length
45
TOW/TOAD
2015 Jeep Trailhawk
Fulltimer
No
Is driving over rocks in a Jeep analogous to @Neal flying his plane? Trying to understand as both are up in the air.


Neal

Staff member
RVF Administrator
Joined
Jul 27, 2019
Messages
7,077
Location
Midlothian, VA
RV Year
2017
RV Make
Newmar
RV Model
Ventana 4037
RV Length
40' 10"
TOW/TOAD
2017 Chevy Colorado
Fulltimer
No
Yeah, I don't get it. Can't you just drive around them??


J&JD

RVF Supporter
Joined
Nov 3, 2019
Messages
1,344
Location
Fremont, California
RV Year
2017
RV Make
Newmar
RV Model
Dutch Star 4018
RV Length
40’
TOW/TOAD
Jeep Wrangler Sahara
Fulltimer
No
Dang GPS anyway!


redbaron

Staff member
RVF Moderator
Joined
Nov 3, 2019
Messages
1,739
RV Year
2022
RV Make
Newmar
RV Model
London Aire 4551 (**ON ORDER**)
RV Length
45
TOW/TOAD
2020 Jeep Wrangler Unlimited Rubicon
The trail ratings at Hot Springs OHV Park are very different than most. They range trails from 1 to 5, and the 3s are as tough as anything I have yet to do.

Highly recommend this park. My daughter has a stock sport and was able to do all of the trails we did.

Last edited:

Jim

Squerly
RVF Supporter
Joined
Dec 18, 2019
Messages
1,932
Location
North Carolina
RV Make
On the hunt . . .
TOW/TOAD
2016 Jeep Rubicon Hard Rock

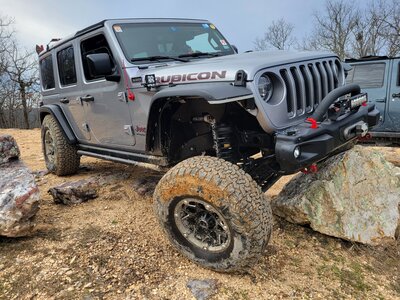

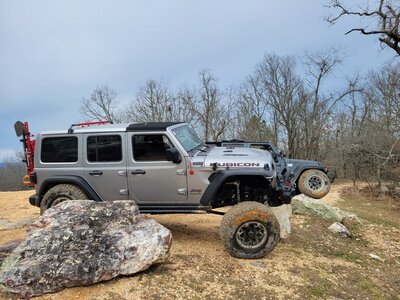

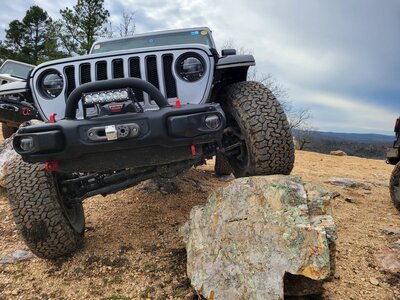

Nice setup RB. What lift are you using and what fenders are those? Also, like the front bumper modification, did the same to mine. Looks great! :)

20220115_140622-jpg.10501


20220114_150208-jpg.10489




redbaron

Staff member
RVF Moderator
Joined
Nov 3, 2019
Messages
1,739
RV Year
2022
RV Make
Newmar
RV Model
London Aire 4551 (**ON ORDER**)
RV Length
45
TOW/TOAD
2020 Jeep Wrangler Unlimited Rubicon
Nice setup RB. What lift are you using and what fenders are those? Also, like the front bumper modification, did the same to mine. Looks great! :)
I am running the Maximus 3 GeoLift with 5in Synergy Springs and the Falcon 3.3Sp2 adjustable shocks.

The fenders are stock, just "chopped" or split in half, removing the outer layer. It really adds a lot of clearance.

My friend had a gladiator Mojave that the split fenders where enough for 37s with no additional lift.

Last edited:
