7 way cable

[Joseph661085]

I pulled my cable out of the junction box, bought new cable but can’t find a wiring diagram, someone have a pic? 2019 chaparral 298RLS, thanks in advance



[Joseph661085]

Please help, need to move it in a few days!![email protected]



[Rich W.]

What are you working on and what created the need? More info needed to assist.



[Joseph661085]

It’s for the taillights and brake lights



[Joseph661085]

From the fifth wheel to the tow vehicle



[Rich W.]

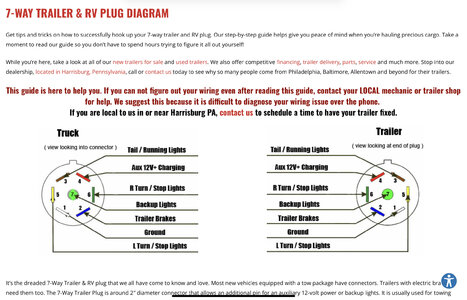

in that case, this should help
:
It really depends on it all being wired right in the first place



[Rich W.]

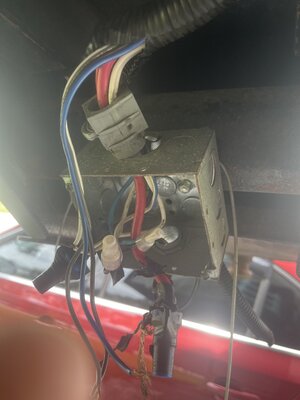

The big red wire is obviously 12v power, but I don’t see brown, green, and yellow. Looks like its going to be trial and error with a multi meter.



[Joseph661085]

What are you working on and what created the need? More info needed to assist.

I contacted a dealer that has the same unit and they said they could get a tech to text some pics tomorrow



[Joseph661085]

I contacted a dealer that has the same unit and they said they could get a tech to text some pics tomorrow



[Joseph661085]

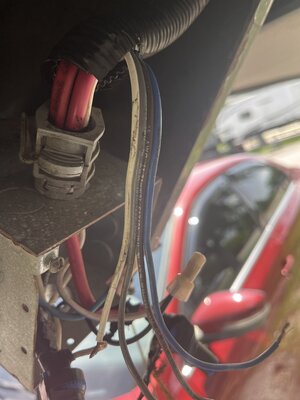

Cable was hard wired to these 4 wires with the plug for truck on other end
